Drywall Stud And Track Forming Machine
Stud and Track Roll Forming Machine: Automate Your Metal Framing Production with Precision
Are you looking for a reliable solution for producing the metal studs and tracks needed for high-quality ceiling, wall, and partition frames?
Our superior stud and track forming machines are designed for the production of basic frame profiles used in ceiling and wall construction. They offer fully automatic, high-speed production, minimizing material waste and helping your building materials supply business efficiently meet growing market demands.

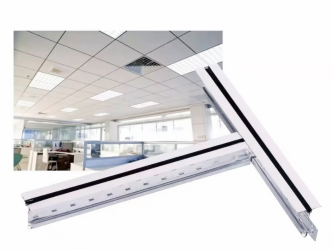

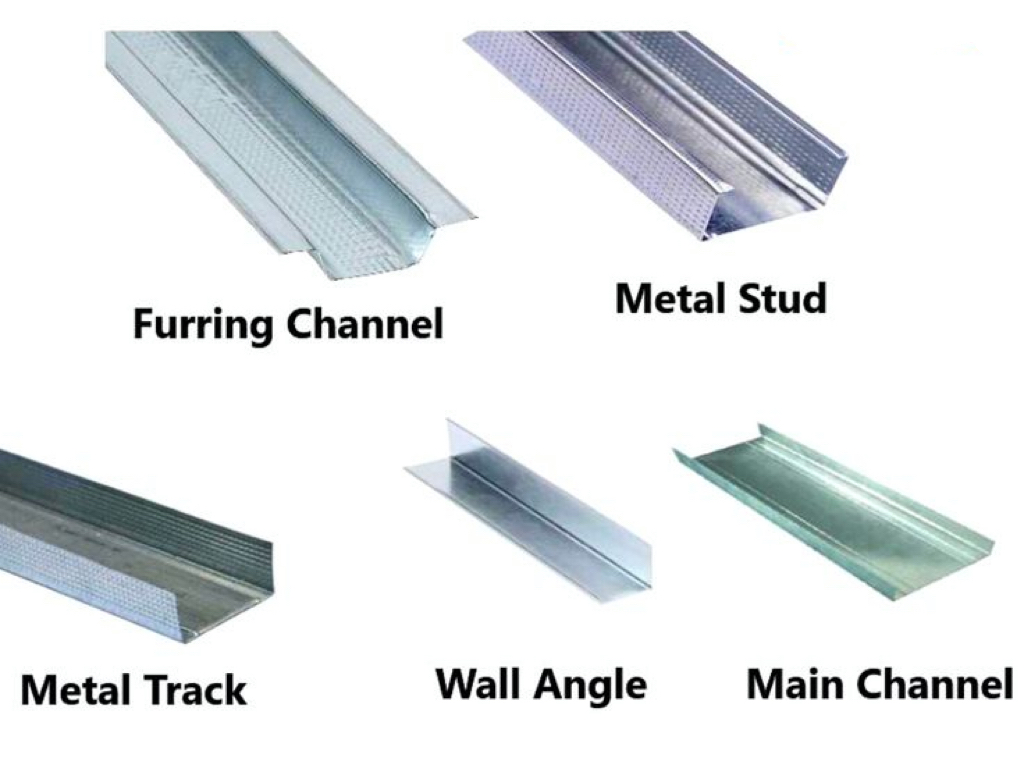

Specifically designed for light steel frame structures, this equipment processes metal coils into consistently shaped C-studs and U-tracks, furring channels, L-angles, T-bars, and cassette keels—essential components for drywall, suspended ceilings, and modular construction. It is suitable for all light steel frame ceiling systems, covering applications such as drywall ceilings in residential living rooms and bedrooms, as well as commercial applications in offices, workshops, shopping malls, and mineral fiber board ceilings.
Drywall Stud And Track Machine
Working Flow:

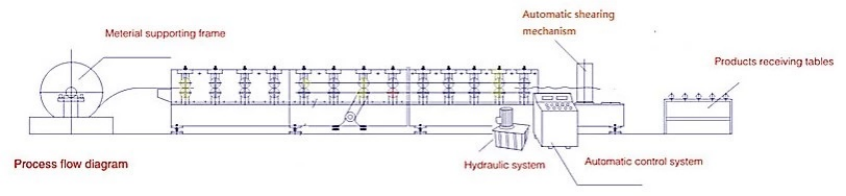

3tons Manual Decoiler — Feeding Table — Forming Part — PLC Control System — Hydraulic Pump –Servo Drive Hydraulic Cutting — Output Table
How Stud and Track Roll Forming Works？
This production line utilizes advanced automation technology to directly process metal coils into profiles for light steel construction. Our C-Stud and U-Track Roll Forming Machine integrates an uncoiler, feeding platform, forming main unit, punching unit, hydraulic cutting unit, and receiving device into a complete production line, making your keel and track products stand out in the market.
- Uncoiler: Steel coils are manually loaded onto the uncoiler’s spool, ensuring safe loading before being fed into the forming main unit. We offer manual, electric, and hydraulic uncoilers, and other specifications, which can be customized to your needs.
- Feeding Device: The coil is controlled by the feeding platform to enter the forming rollers of the forming main unit in a straight line, preventing deviation during production.
- Main Forming Section: The main unit is processed by more than a dozen roller pressing stations, resulting in a complete profile with precise dimensions for the C-stud or U-Track guide rails.
- Punching Unit: Precise holes are punched into the profiles after forming (for fasteners or connecting other profiles). Servo positioning ensures accuracy. The punching device can be added according to your needs.
- Hydraulic Cutting Device: Utilizes a non-stop servo cutting method for precise cutting, doubling machine output. Continuous operation of the entire production line is achieved through a receiving device.
- PLC Control System: The PLC control cabinet allows setting the required profile length, machine operating speed, and production order quantity.
- Hydraulic Pump Station System: Provides powerful hydraulics for the shearing and punching units. A large-capacity, self-cooled pump station system prevents overheating and reduced machine output.
- Receiving Device: Equipped with a device for automatically stacking finished profiles for packaging or subsequent processing.

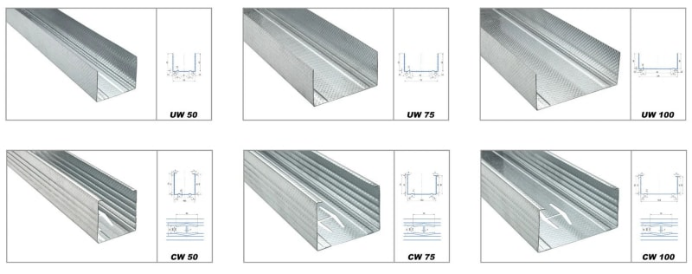

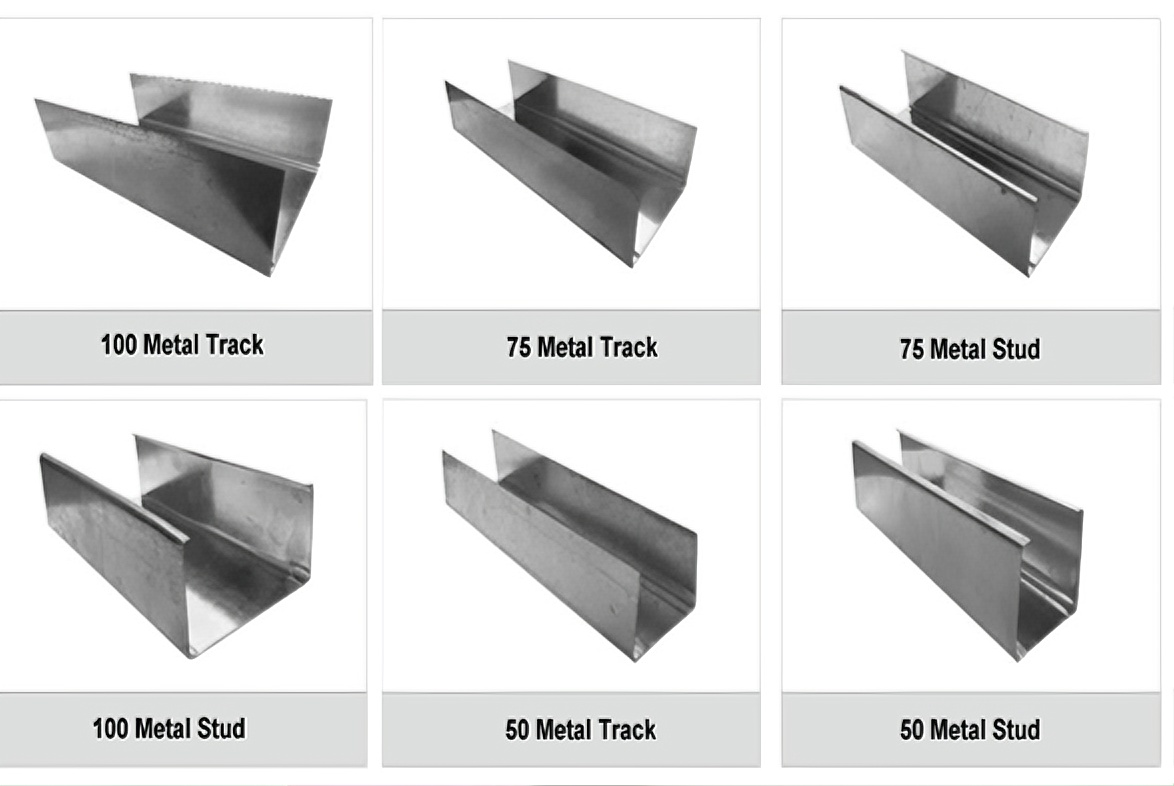

Stud And Track Profile Dimensions：
Technical Specifications
| Parameter | Specification |
| Applicable Material | Galvanized steel / Stainless steel / Carbon steel |
| Coil Thickness Range | 0.4 mm – 1.2 mm |
| Coil Width | 185mm/174mm/145mm (customizable) |
| Forming Speed | 20-40 m/min (adjustable) |
| Keel specifications | 38/50/60/75mm |
| Roller Material | GCr15 steel with hard chrome coating |
| Number of Roll Stations | 12–14 stations (depending on profile) |
| Main Motor Power | 11–15 kw (based on profile and thickness) |
| Punching: | Optional |
| Cutting System | Servo non-stop punching, blade material: Cr12Mov |
| Control System | Siemens PLC + HMI touchscreen |
| Drive System | Gear or Gearbox drive |
| Decoiler | Manual or hydraulic, 3–5 tons |
| Power Supply | 380V/50Hz/3Ph (customizable) |
| Dimension (L×W×H) | Approx. 11m × 1.5m × 1.5m (depends on configuration) |

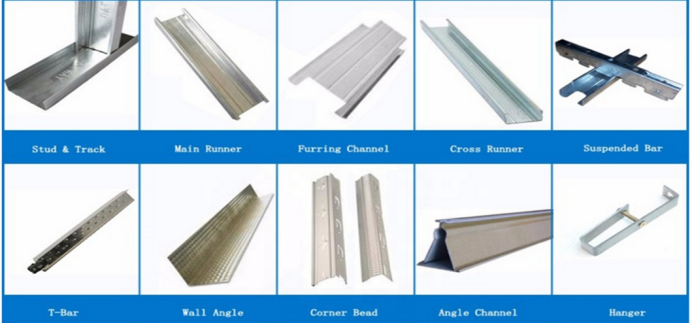

Yousheng roll forming machine company can process Complete Roll Forming Lines for Metal Studs, customized according to different light steel keel profiles, including: C-Hat Channel Roll Forming Equipment, Ceiling T-grid Making Machine, L-Shaped Framing Channel Forming Machine, and other irregular forming equipment.
Our Stud and Track Roll Forming Machines: Core Advantages
Our machines are designed for reliability and production efficiency, solving the pain points of traditional metal frame production—labor-intensive processes, poor profile consistency, and high material waste. Here are our advantages:
- Intelligent Control System: Branded PLC program + user-friendly touchscreen interface, allowing users to set the required profile length and production speed.
- High-Precision Positioning System: Equipped with Siemens brand servo motor drive, hydraulic cutting achieves smooth, burr-free cutting with a repeatability accuracy of ±0.05mm.
- Fully Automated Integrated Process: From uncoiler, coil feeding, forming, punching, and cutting, the entire keel profile production process is completed in one go. One operator can manage the entire process, reducing labor costs by 50% compared to manual operation.
- Applicable to multiple specifications of coil materials: Easily handles materials ranging from 0.3-1.2m in thickness, whether carbon steel or galvanized coils.
- Customizable profiles and automatic profile changing: Adjustable rollers accommodate various profile sizes (from 38mm to 140mm), suitable for ceiling joists, wall joists, and partitions. One-button automatic profile changing can switch between joist and track sizes within 1 minute.
- High speed and low wear: Our machine’s forming speed can reach 20-40 meters per minute, supporting mass production for commercial and government projects. The hydraulic cutting system uses non-stop servo cutting, reducing low-speed cutting. A rationally designed power system reduces energy consumption.
Stable and low maintenance costs: The stud and track roll forming machine adopts a box-frame structure, minimizing vibration during operation. Add appropriate amounts of hydraulic oil according to production volume; routine maintenance requires monthly checks to reduce downtime.
Application scenario demonstration:

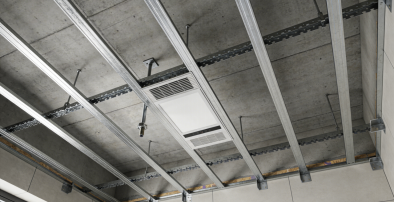

- Integrated Ceiling Production Equipment：
- Commercial Ceiling Grid Forming Equipment：
Our services
End-to-end time-difference service standard
√ Customized Roll Forming Machine Design
Our team of engineers will work closely with you to thoroughly understand your product requirements (such as cross-sectional shape, thickness, and production output) and provide you with the most cost-effective technical solutions.
√ Installation, Commissioning, and Trial Production Support
We can dispatch experienced engineers to provide on-site guidance and equipment installation. We can arrange for engineers to accompany production for up to seven days and assist customers with equipment acceptance.
√ 24/7 Technical Support and Remote Diagnosis
We offer a 24/7 technical hotline to quickly respond to technical issues you encounter during production.
√ Equipment Upgrade and Retrofit Services
We can offer retrofit and upgrade solutions for your company’s existing equipment, including automation upgrades and speed-up services, giving it new life.
Drywall Stud And Track Machine
Thickness: 0.4-0.9mm
Raw material: GI
Shearing method: servo non-stop cutoff
Type: C channel
Thickness: 1-1.2mm
Raw material: GI
Transmission mode: gear
Number of rows: 12 rows
Length: any length
Model: C Channel
Speed: 50m/min
Advantage: high speed
Cutting: non-stop
Shear: Die Shear
Warranty: two years
Certificate: CE SGS
Power: 4+5.5kw
Electric control: convenient
Feedback from customers in Texas
How is our C stud roll forming machine?
Please see the video on the right. This is a C stud roll forming machine purchased by our customer in Texas. This is their first machine, and we conducted pre-purchase calculations based on their future production plans and needs, customizing this machine to their specifications. The customer feedback is that this machine is perfect for them, and they quickly recouped the machine’s value.
If you are also a beginner, you can confidently choose us. We customize machines according to your specific needs.
Customer Case Studies
–Last year, we supplied a fully automatic stud and track roll forming machine to a Southeast Asian building materials supplier. A building materials company in the Philippines wanted to upgrade your equipment and purchased our fully automatic stud and track roll forming machine. Within just three months, their production capacity increased by 80%, material waste decreased from 12% to 3%, and they expanded their supply range to six large-scale construction projects in the local market. The machine’s automatic sizing function enabled them to meet the diverse profile requirements of residential and commercial customers.
Yes, we can customize stud and track roll forming machines to your specific needs, such as the machine speed, keel profile dimensions, and machine transmission method.
The forming speed of our machine can be customized to your needs. Standard speeds reach 10-15 m/min, while high-speed speeds can reach 30-45 m/min. Please provide your specific product parameters so we can help you calculate the precise production output.
We offer two size change methods: manual and PLC automatic. Manual change takes approximately half an hour, while PLC automatic change takes only 10 seconds. The exact changeover time will be calculated based on the specific machine you customize.
We offer a two-year warranty and lifetime technical support, starting from the date the machine arrives at your factory. Within the two-year warranty period, we will replace any non-human-caused parts free of charge; for parts damaged by human error, we will only charge you the cost of the replacement parts.
