Metal Door Roll Forming Machine
The metal rolling shutter door forming machine produced by Yousheng is an automated machine specifically designed for the continuous processing of metal sheets. The raw material undergoes multiple rolling and forming steps, ultimately forming metal rolling shutter curtain slats that meet the structural specifications of the metal rolling shutter door.
The core function of the metal rolling shutter door forming machine is to transform flat metal coils (or sheets) through an integrated “continuous rolling forming + cutting” process into finished curtain slats that can be directly assembled into rolling shutter doors.

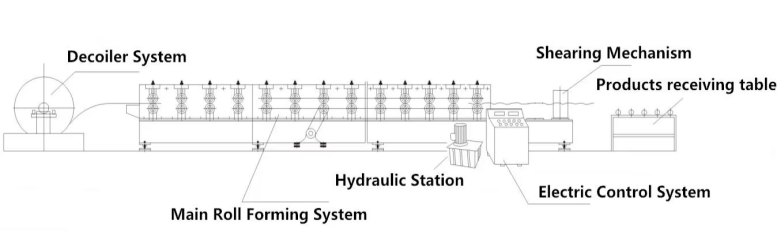

Production Process Flow:
Decoiler — Feeding Table –Printing process– Forming Part –Punching device–PLC Control System — Hydraulic Pump –Hydraulic Cutting — Output Table

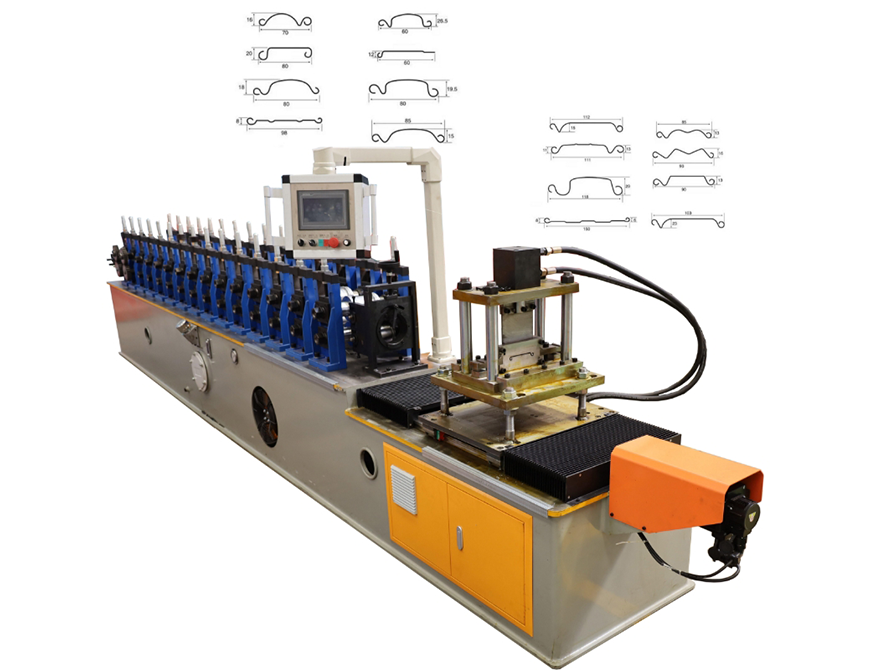

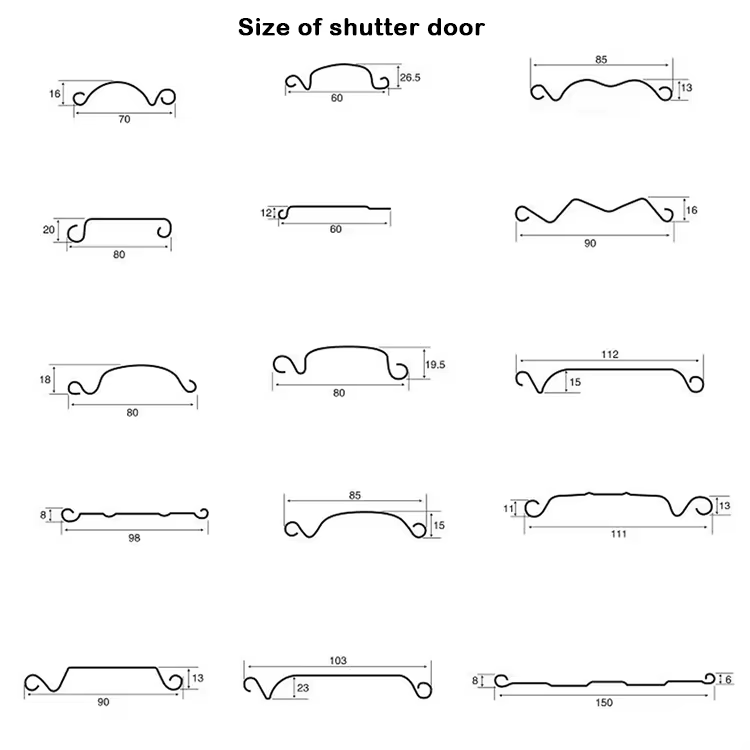

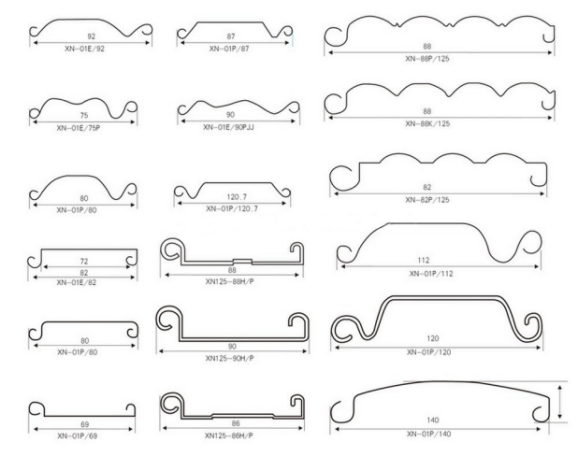

Commonly used rolling shutter door profiles：
Product Advantages:
High-Speed Production: Capable of handling speeds up to 25-30 meters per minute, sufficient to support high-volume orders.
Durable: The cabinet and archway structure supports long-term high-speed operation.
Easy Operation: The entire machine uses a brand-name PLC control system; simple training is all it takes to operate it easily.

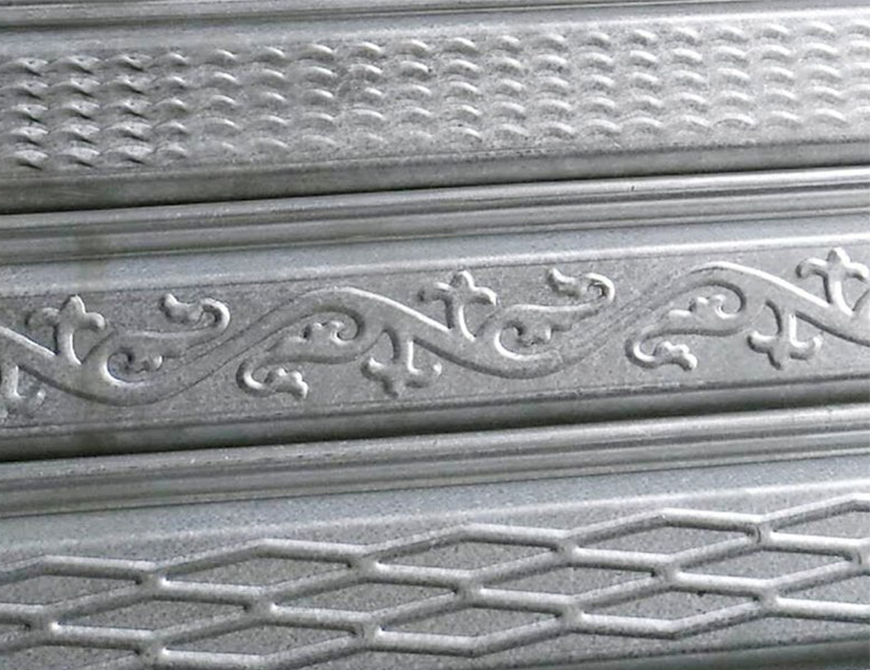

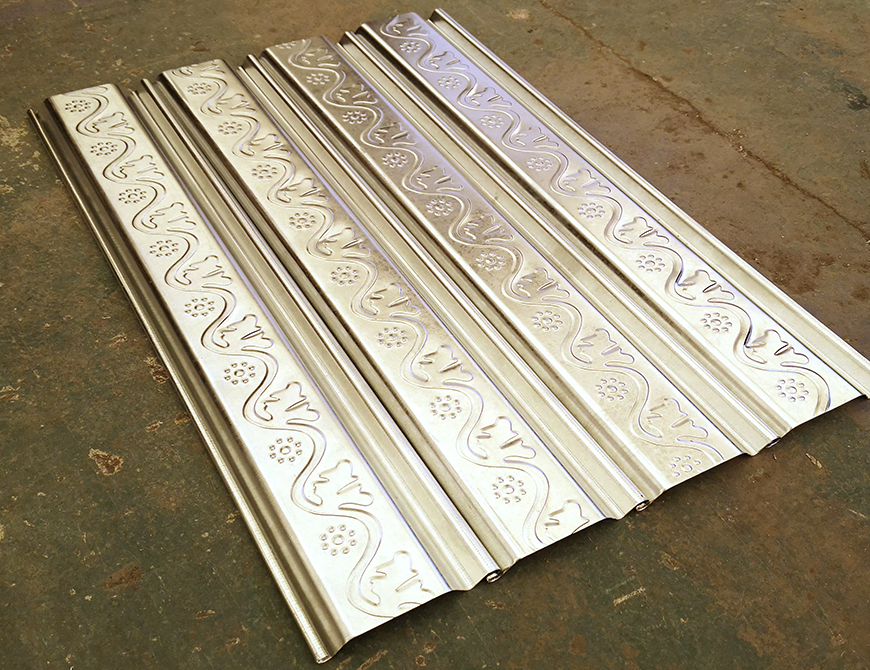

Customization Available: Customizable designs for various roller shutter door profiles, materials (galvanized steel, aluminum, etc.), output, patterns, hole positions, etc.
One-Step Forming: From roll material to finished roller shutter door profile, our machine can complete all your needs in one step.
Technical parameters:
| Applicable Coil Material： | GI /PPGI/Customize |
| Coil Material Thickness： | 0.6-1.0mm |
| Feed Width： | 135mm/155mm/175mm |
| Number of Forming shaft： | 60mm |
| Transmission method: | Gear/Chain |
| Forming Speed： | 20-25m/min |
| Main Motor Power： | 5.5kw+11kw |
| Electrical control system： | PLC + HMI Touch Screen |
| Power Supply： | 380V/50Hz/3Ph (customizable) |
| Dimensions ： | Approx. 10m × 2.5m × 1.3m(depends on configuration) |

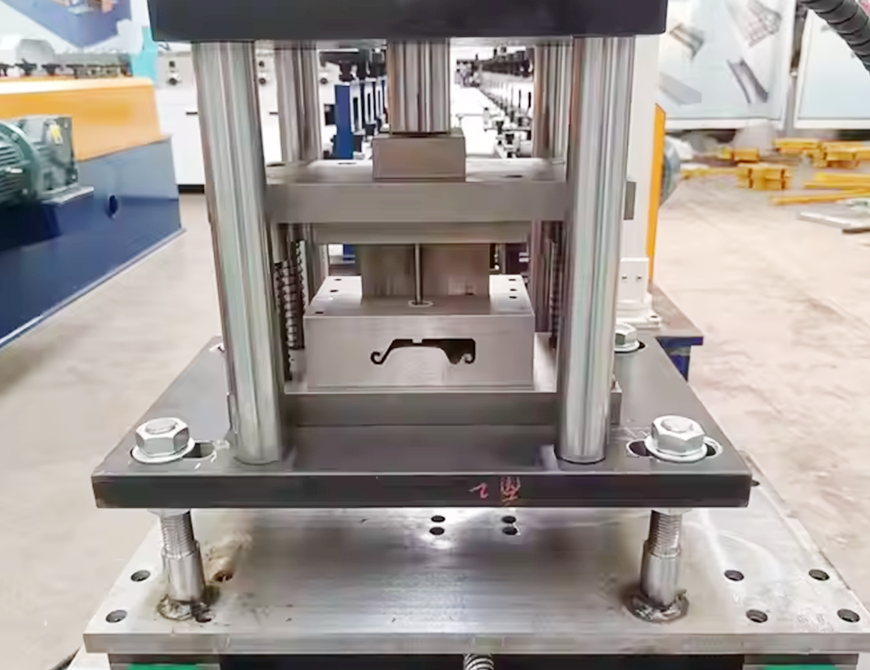

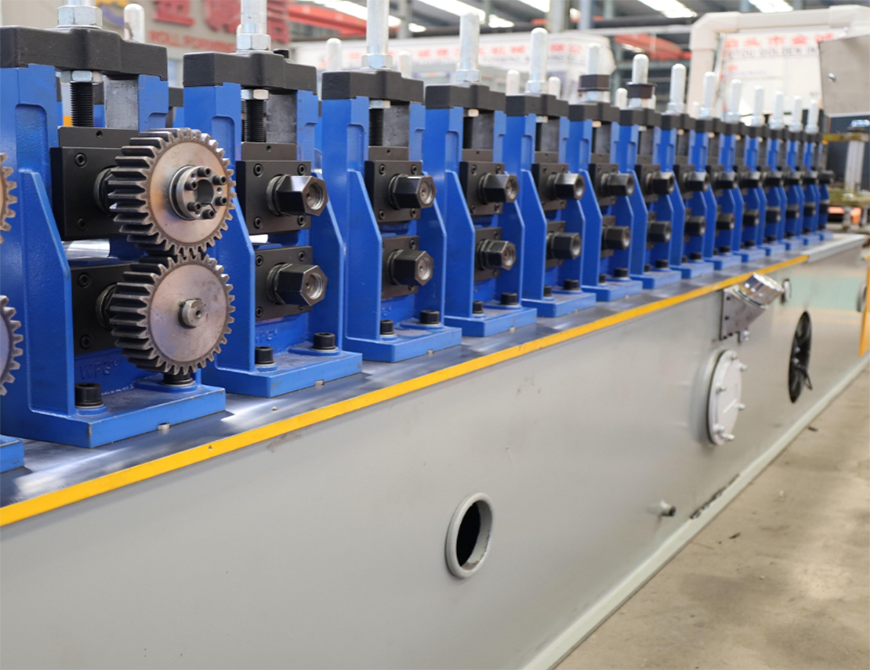

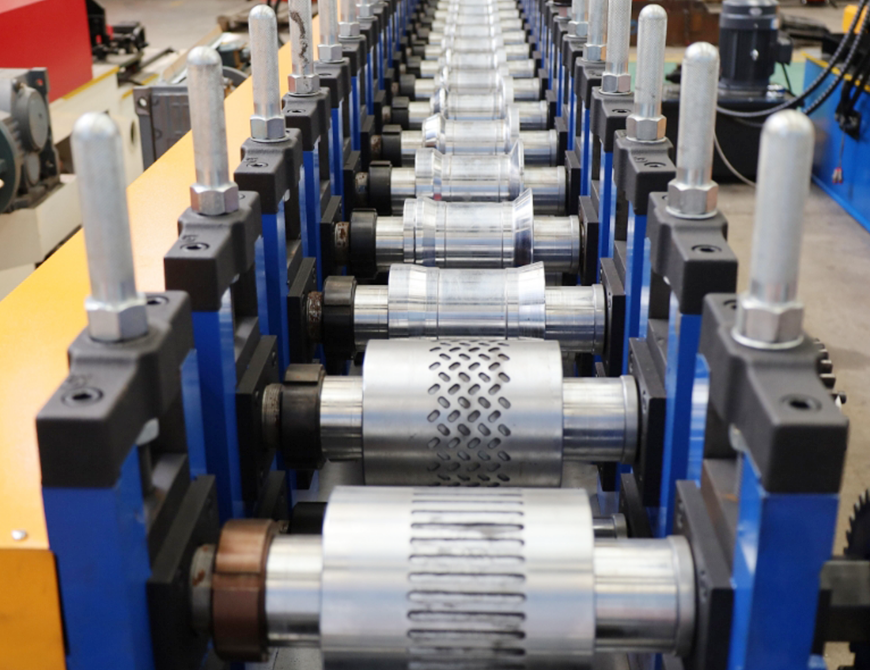

Machine images：

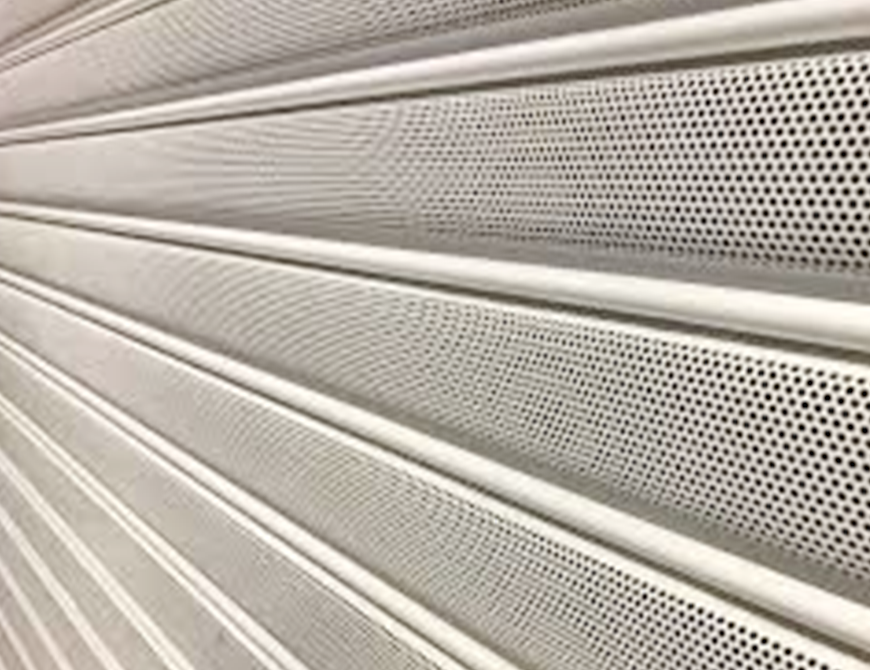

Rolling Door Applications
- Commercial Use: Shopping malls, convenience stores, clothing stores
- Residential Use: Villa garages, balcony partitions
- Industrial Use: Factory workshops, warehouses, logistics transfer stations
- Public Use: Parking lot entrances and exits
Our services
√ Customized Roll Forming Machine Design
Our team of engineers will work closely with you to thoroughly understand your product requirements (such as cross-sectional shape, thickness, and production output) and provide you with the most cost-effective technical solutions.
√ Installation, Commissioning, and Trial Production Support
We can dispatch experienced engineers to provide on-site guidance and equipment installation. We can arrange for engineers to accompany production for up to seven days and assist customers with equipment acceptance.
√ 24/7 Technical Support and Remote Diagnosis
We offer a 24/7 technical hotline to quickly respond to technical issues you encounter during production.
√ Equipment Upgrade and Retrofit Services
We can offer retrofit and upgrade solutions for your company’s existing equipment, including automation upgrades and speed-up services, giving it new life.
A：We offer a two-year warranty and lifetime technical support, starting from the date the machine arrives at your factory. Lifetime support and spare parts supply are available.
A：Standard delivery time is 35-40 working days after deposit and confirmation of technical details. If urgent, we can offer fast-track production in special cases.
A：Yes. We provide on-site installation and training if needed. For remote clients, we offer video guidance, 3D machine manuals, and online support via Zoom or WhatsApp.
A：Yes, our machines are compatible with galvanized coils, color-coated coils, aluminum coils, etc. Custom processing is available according to customer requirements.
A：Yes, we can design solutions tailored to each customer’s needs, providing different patterns of roller shutter profiles for a single machine.
A：If you are unable to inspect the equipment in person, we can conduct a video inspection via Zoom or WhatsApp. You can then see every part of your machine through the video.
