Glazed Tile Roll Forming Machine
As a leading manufacturer of glazed tile forming equipment, Yousheng specializes in designing and producing high-performance glazed tile roll forming machines. Glazed roofing profiles are among the best-selling industrial building materials, used in residential buildings, commercial office buildings, and other fields. We introduce advanced technology, from roll materials to dimensionally precise and durable glazed tiles; our machines can help you reduce production costs and increase output. We offer customized solutions, tailored to the specific needs of both large building materials wholesalers and startups.
Glazed Tile Roll Forming Machine

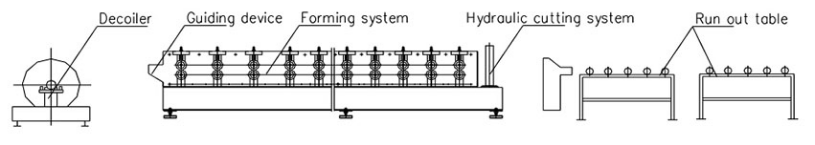

Working Flow:
5tons Decoiler — Guiding device — Forming Part –Hydraulic Cutting– Output Table
–PLC Control System — Hydraulic Pump

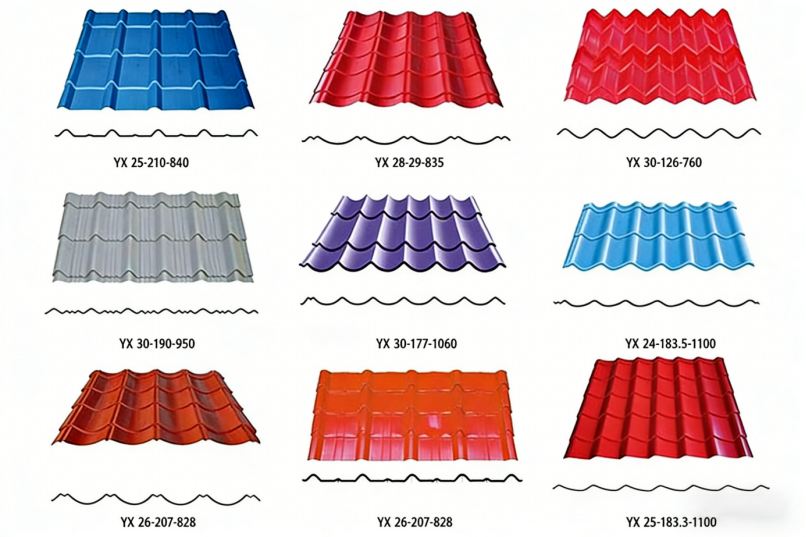

Pattern Diagram：
Technical parameters:
| Applicable Coil Material： | GI/PPGI/Customize |
| Coil Material Thickness： | 0.3-0.8mm |
| Feed Width： | 1000mm/1200mm/1250mm |
| Number of Forming shaft： | 70mm |
| Transmission method: | Gear/Chain |
| Forming Speed： | 2-4m/min |
| Main Motor Power： | 5.5kw+4kw |
| Electrical control system： | PLC + HMI Touch Screen |
| Power Supply | 380V/260V/50Hz/3Ph (customizable) |
| Dimensions ： | Approx. 5.5m × 2m × 1.5m(depends on configuration) |
Hot selling glazed tile machine
power:4+5.5kw
Thickness of the plate:0.3-0.9mm
speed：4m/min
PLC system：Delta/Customized
Configuration: Standard/According to customer requirements
Language: Chinese and English/customized
Roller station：15-18 rows
Speed: 2-4m/min
Version: customized
Shaft diameter: 75mm
Number of rows: 16-18
Type: PLC
Version: Produced according to customer requirements
Use: Roof
Speed: screen adjustable
Operation screen: portable
Motor: Siemens/other brands
Method: automatic forming roller pressing
Yes.We offer customized manufacturing services for each piece of equipment, designing project solutions tailored to our clients’ needs.
